Alumina Ceramic: Key Advantages and Disadvantages Explained

Date: November-28-2025 Categories: News、Alumina Views: 2

Alumina ceramic components produced by Banlan alumina ceramic manufacturer for industrial applications

Alumina ceramic, also called Al2O3 ceramic, is one of the most widely used advanced ceramic materials. It offers high hardness, good wear resistance and stable performance at high temperature. Because of these advantages, alumina ceramics are common in machinery, electronics, chemical and energy industries. However, like every material, alumina ceramic also has disadvantages and limits in design and use.

This article explains the main advantages and disadvantages of alumina ceramic in a clear and simple way. It is written from the viewpoint of an alumina materials Manufacturer, Supplier and Factory. Banlan focuses on alumina series materials for industrial customers and Wholesale buyers around the world. The goal is to help engineers, buyers and end users decide when alumina ceramic is the right choice, and when another material might be better.

Table of Contents

1. What Is Alumina Ceramic?

Alumina ceramic is a ceramic material based on aluminum oxide (Al2O3). Depending on purity and microstructure, alumina ceramics can be 85%, 95%, 99% or even higher Al2O3 content. Higher purity usually means better electrical insulation, higher hardness and better high-temperature performance.

As an industrial material, alumina ceramic sits between metals and polymer plastics. It has a rigid, ionic–covalent crystal structure. This structure gives alumina ceramics their well-known hardness and wear resistance, but also makes them more brittle compared with metals.

2. Key Properties of Al2O3 Ceramic

Important basic properties of Al2O3 ceramic include:

  • High hardness and excellent wear resistance.
  • High melting point and high-temperature stability.
  • Good chemical resistance to acids and alkalis.
  • Strong electrical insulation and low dielectric loss.
  • Moderate density, lighter than steel but heavier than polymers.
  • Relatively low fracture toughness and higher brittleness.
  • Lower thermal conductivity compared with metals or some advanced ceramics.

When evaluating the advantages and disadvantages of alumina ceramic, it is important to keep these basic properties in mind. They influence design choices, machining methods and the final performance of components.

3. Advantages of Alumina Ceramic

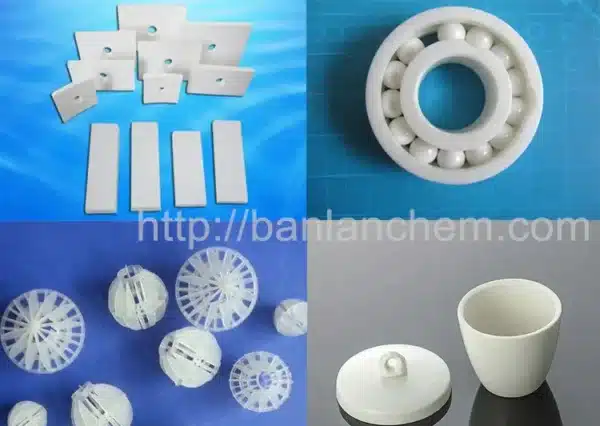

Advantages of alumina ceramic showing high hardness, wear resistance and electrical insulation

3.1 High Hardness and Wear Resistance

One of the most important advantages of alumina ceramic is its very high hardness. On the Vickers scale, alumina ceramics can reach over 1500 HV depending on grade. This hardness allows alumina components to resist scratching, abrasion and surface damage in harsh environments.

Because of this, many Manufacturer and Supplier companies use alumina ceramic for wear parts, sealing rings, valve seats and sliding elements. Compared with many metals, alumina ceramics can maintain their surface and size for a longer time under continuous friction.

3.2 High-Temperature Resistance

Alumina ceramic has a very high melting point, above 2000°C. In real service, high-purity alumina ceramics can be used at temperatures up to about 1600–1650°C in air, depending on the design. This is a major advantage over many metals, polymers and composites.

In high-temperature furnaces, kilns and thermal equipment, alumina ceramic components offer both thermal stability and good dimensional stability. A low thermal expansion coefficient helps parts maintain shape and alignment, which is critical for precision fixtures and insulating parts.

3.3 Corrosion and Chemical Resistance

Another strong advantage of alumina ceramic is its resistance to many chemicals. Al2O3 ceramic is stable in many acids, alkalis and organic solvents. It does not rust like steel and does not swell like some plastics.

This makes alumina ceramics suitable for pumps, chemical equipment and fluid handling systems. In such applications, a Factory or Wholesale user can often extend maintenance intervals by switching from metal to alumina ceramic parts.

3.4 Excellent Electrical Insulation

High-purity alumina ceramic is an excellent electrical insulator. It has high volume resistivity and low dielectric loss, even at high frequencies. This is why many electronic components use Al2O3 ceramic substrates, insulators and housings.

For power electronics, sensor packages and high-voltage systems, the advantages of alumina ceramic in insulation are key. Good insulation reduces leakage current, improves safety and increases reliability over long service life.

3.5 Optical and Special Grades

In some cases, alumina ceramics can be engineered to be translucent or even transparent. Transparent alumina ceramics can be used for special windows, armor and optical components. These special grades require careful processing but show how flexible alumina ceramic technology can be.

3.6 Lower Density Compared with Steel

The density of alumina ceramic is usually between 3.6 and 3.95 g/cm³. This is roughly half the density of steel. The lower density helps reduce the total weight of assemblies when designed properly.

For rotating equipment, lighter components may lead to lower energy consumption and less wear on bearings. This is one more point in the list of advantages of alumina ceramic for modern engineering.

4. Disadvantages of Alumina Ceramic

Along with all these strengths, there are also important disadvantages of alumina ceramic that must be considered. Understanding these limits helps engineers choose the right material and avoid failures in service.

4.1 High Brittleness and Low Toughness

The main disadvantage of alumina ceramic is its brittleness. It has low fracture toughness compared with metals. Under impact or sudden shock, alumina components can crack or break without much plastic deformation.

This means design and installation must minimize local stress concentrations and sudden impacts. A good Manufacturer or Factory will advise on correct mounting methods and geometries to reduce this risk.

4.2 Difficult to Machine and Process

Because of its high hardness, alumina ceramic is very difficult to machine using standard tools. Most final machining must be done by diamond grinding or other special techniques. This increases manufacturing cost and lead time.

For buyers and Wholesale users, this means that alumina ceramic parts often need clear drawings, stable demand and enough order quantity to make production economical. Simple last-minute design changes are more difficult than with metal parts.

4.3 Lower Thermal Conductivity

Compared with metals or some high thermal conductivity ceramics, alumina ceramic has relatively low thermal conductivity. In some high-power or high-heat-flow applications, this can be a disadvantage.

For example, silicon carbide (SiC) and aluminum nitride (AlN) ceramics offer much better thermal conductivity than alumina. When fast heat spreading is critical, these alternative materials may be a better option.

5. Typical Applications of Alumina Ceramic

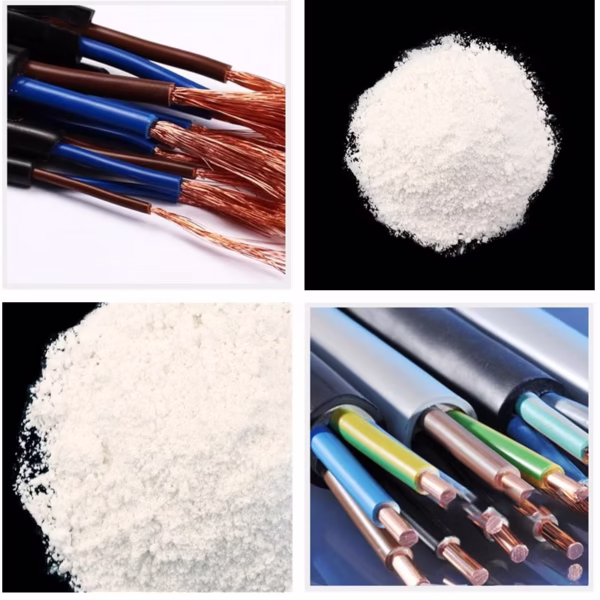

Industrial applications of alumina ceramic in machinery, electronics and chemical equipment

Thanks to its advantages, alumina ceramic is used in many areas, such as:

  • Wear-resistant parts: liners, seals, valve seats, nozzles.
  • High-temperature components: furnace tubes, kiln furniture, thermal insulation parts.
  • Electrical insulators and substrates: electronic packages, spark plugs, sensor housings.
  • Chemical equipment: pump parts, corrosion-resistant fittings, flow control parts.
  • Mechanical parts in harsh environments where metals fail too fast.

Many of these applications also use other alumina-based materials. For example, Tabular Alumina and White Fused Alumina from Banlan are key raw materials for refractories and abrasives that work together with alumina ceramics in furnaces and grinding systems.

6. Alumina Ceramic vs Other Materials

When looking at the advantages and disadvantages of alumina ceramic, it is helpful to compare it with alternative materials.

  • Alumina ceramic vs metals: Much harder and more wear resistant; better corrosion and temperature resistance; but more brittle and harder to machine.
  • Alumina ceramic vs polymers: Much higher temperature capacity and stiffness; but heavier and not flexible.
  • Alumina ceramic vs SiC or AlN: Easier to source and more cost-effective; but with lower thermal conductivity than SiC and AlN.
  • Alumina ceramic vs standard alumina powders: Structural, shaped parts vs powders such as Calcined Alumina used in ceramics, polishing and refractories.

In many cases, Banlan helps customers combine different materials in one system. For example, alumina ceramic parts can work together with Boehmite Powder based coatings or Aluminum Hydroxide (ATH) flame-retardant fillers in complex industrial solutions.

7. Related Banlan Alumina Products (Internal Links)

Banlan alumina materials including Tabular Alumina, White Fused Alumina, Calcined Alumina, Boehmite powder and Aluminum Hydroxide for ceramics and refractories
Banlan offers a full alumina materials portfolio to support alumina ceramic and refractory applications.

As an alumina materials Manufacturer, Supplier and Factory, Banlan provides a broad product range that supports alumina ceramic and related applications:

These internal links help users explore Banlan’s full alumina portfolio and understand how raw materials support the final alumina ceramic components used in industry.

8. How to Choose a Reliable Alumina Ceramic Manufacturer

When selecting an alumina ceramic Manufacturer or Supplier, consider the following points:

  • Experience with Al2O3 ceramic design and production.
  • Control over raw materials, such as alumina powders and fused alumina.
  • Quality system, testing equipment and traceability.
  • Ability to support custom shapes and OEM projects.
  • Service for Wholesale and long-term industrial customers.

A strong alumina ceramic Factory will not only supply parts, but also help you choose the right grade, purity level and processing route. Banlan focuses on building long-term cooperation with customers who use alumina ceramic and related materials in their own products.

9. FAQ: Alumina Ceramic Advantages and Disadvantages

9.1 Is alumina ceramic stronger than steel?

Alumina ceramic is much harder and more wear resistant than most steels. However, it is more brittle and cannot absorb impact in the same way. This is one of the key disadvantages of alumina ceramic compared with metals.

9.2 Why choose alumina ceramic instead of metal?

Choose alumina ceramic when you need high-temperature resistance, strong chemical resistance, electrical insulation or very high wear resistance. For parts exposed to strong impact or bending, metals may still be better.

9.3 Can alumina ceramic be used in high-frequency electronics?

Yes. High-purity Al2O3 ceramic has low dielectric loss and excellent insulation. It is widely used as a substrate and insulator in RF and power electronics.

9.4 How does Banlan support alumina ceramic users?

Banlan supplies high-quality alumina raw materials and works with ceramic producers, designers and Wholesale distributors. By offering stable quality, technical support and a full alumina product range, Banlan helps customers get the most from the advantages of alumina ceramic.

10. Conclusion

The advantages and disadvantages of alumina ceramic both play an important role in material selection. On the positive side, alumina ceramics offer high hardness, strong wear resistance, high-temperature stability, good chemical resistance and excellent electrical insulation. On the negative side, they are brittle, hard to machine and have lower thermal conductivity than some metals and advanced ceramics.

By understanding both sides, engineers and buyers can make better decisions. Working with a professional alumina materials Manufacturer, Supplier and Factory like Banlan helps ensure you choose the right grade and design. In this way, alumina ceramic can deliver reliable, long-term performance in demanding industrial applications.
